应用拦截器和网络拦截器 以前其实就有一直在使用okhttp,也有听说过拦截器这东西,但是一直没有去深入了解。最近看《安卓进阶之光》刚好看到okhttp拦截器的内容,然后自己也去挖了下源码,才发现其巧妙之处。
拦截器有两种,应用拦截器和网络拦截器。用法可以看下面的代码:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 class LogInterceptor implements Interceptor { private String mName; LogInterceptor(String name) { mName = name; } @Override public Response intercept(Chain chain) throws IOException { Response response = chain.proceed(chain.request()); Log.d("LogInterceptor", "[" + mName + "] : request url = " + response.request().url() + ", " + response.headers().toString()); return response; } } OkHttpClient client = new OkHttpClient.Builder() .addInterceptor(new LogInterceptor("ApplicationInterceptor")) .addNetworkInterceptor(new LogInterceptor("NetworkInterceptor")) .build(); Request request = new Request.Builder() .url("http://www.github.com") .build(); client.newCall(request).enqueue(null);
运行之后的打印如下:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 12-29 00:07:02.378 12641-12859/com.example.okhttp D/LogInterceptor: [NetworkInterceptor] : request url = http://www.github.com/, Content-length: 0 Location: https://www.github.com/ 12-29 00:07:03.653 12641-12859/com.example.okhttp D/LogInterceptor: [NetworkInterceptor] : request url = https://www.github.com/, Content-length: 0 Location: https://github.com/ 12-29 00:07:04.889 12641-12859/com.example.okhttp D/LogInterceptor: [NetworkInterceptor] : request url = https://github.com/, Date: Thu, 28 Dec 2017 16:07:05 GMT Content-Type: text/html; charset=utf-8 Transfer-Encoding: chunked Server: GitHub.com Status: 200 OK ...(省略部分打印) 12-29 00:07:04.896 12641-12859/com.example.okhttp D/LogInterceptor: [ApplicationInterceptor] : request url = https://github.com/, Date: Thu, 28 Dec 2017 16:07:05 GMT Content-Type: text/html; charset=utf-8 Transfer-Encoding: chunked Server: GitHub.com Status: 200 OK ...(省略部分打印)
拦截器是一种强大的机制,可以在拦截器中进行监视、重写和重试调用。像我们上面的代码就对请求进行了监视。
从打印可以看到,网络拦截器拦截到了三个请求,同时拦截到了重定向的访问。而应用拦截器只拦截到了一个请求,同时我们可以看到它拦截到的请求的url是 https://github.com/ http://www.github.com
简单来讲,网络拦截器在每一次网络访问的时候都会拦截到请求,而应用拦截器只会在OkHttpClient.newCall返回的Call执行的时候被调用一次。
okhttp的运行流程 在讲拦截器的实现之前我们先来简单介绍一下okhttp的运行流程。
首先通过OkHttpClient.newCall我们可以获得一个RealCall:
1 2 3 4 5 6 7 public class OkHttpClient implements Cloneable, Call.Factory { ... public Call newCall(Request request) { return new RealCall(this, request); } ... }
异步访问 RealCall实现了Call。接口,我们通过调用enqueue方法可以实现异步网络访问。让我们直接看看RealCall.enqueue吧:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 final class RealCall implements Call { ... public void enqueue(Callback responseCallback) { enqueue(responseCallback, false); } void enqueue(Callback responseCallback, boolean forWebSocket) { synchronized (this) { if (executed) throw new IllegalStateException("Already Executed"); executed = true; } client.dispatcher().enqueue(new AsyncCall(responseCallback, forWebSocket)); } ... }
client.dispatcher()可以获得一个Dispatcher,它用于网络访问任务的调度,我们的异步并发网络访问就是通过Dispatcher实现的。这里创建了一个AsyncCall,然后将它传入Dispatcher.enqueue。AsyncCall是RealCall的内部类,而且它实际上是一个Runnable：
1 2 3 4 5 6 7 final class RealCall implements Call { ... final class AsyncCall extends NamedRunnable { ... } ... }
1 2 3 4 5 6 7 8 9 10 11 12 13 14 public abstract class NamedRunnable implements Runnable { ... @Override public final void run() { String oldName = Thread.currentThread().getName(); Thread.currentThread().setName(name); try { execute(); } finally { Thread.currentThread().setName(oldName); } } protected abstract void execute(); }
NamedRunnable在run方法里面会调用抽象的execute方法,在这个方法内部就会进行实际的网络访问。那Dispatcher.enqueue又做了写什么呢？其实Dispatcher.enqueue实际上将AsyncCall这个Runnable放到了一个线程池中：
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 public final class Dispatcher { ... synchronized void enqueue(AsyncCall call) { if (runningAsyncCalls.size() < maxRequests && runningCallsForHost(call) < maxRequestsPerHost) { runningAsyncCalls.add(call); executorService().execute(call); } else { readyAsyncCalls.add(call); } } ... public synchronized ExecutorService executorService() { if (executorService == null) { executorService = new ThreadPoolExecutor(0, Integer.MAX_VALUE, 60, TimeUnit.SECONDS, new SynchronousQueue<Runnable>(), Util.threadFactory("OkHttp Dispatcher", false)); } return executorService; } ... }
一切明了,Call.enqueue实际上是将AsyncCall这个Runnable放到了线程池中执行去访问网络,而AsyncCall是RealCall的一个内部类,它持有RealCall的引用,所以在被线程池调用的时候可以获得Request的信息。

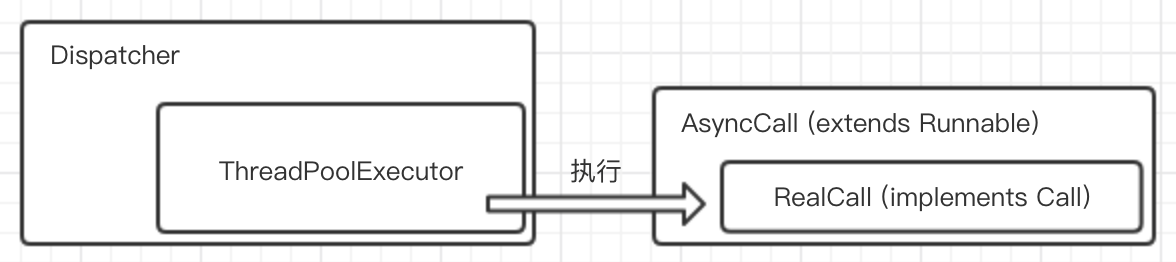

所以将okhttp的异步流程简化之后实际上就是Dispatcher中的线程池对Runnable的执行:
然后我们看看AsyncCall.execute的具体实现:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 final class AsyncCall extends NamedRunnable { ... @Override protected void execute() { boolean signalledCallback = false; try { Response response = getResponseWithInterceptorChain(forWebSocket); if (canceled) { signalledCallback = true; responseCallback.onFailure(RealCall.this, new IOException("Canceled")); } else { signalledCallback = true; responseCallback.onResponse(RealCall.this, response); } } catch (IOException e) { if (signalledCallback) { // Do not signal the callback twice! Platform.get().log(INFO, "Callback failure for " + toLoggableString(), e); } else { responseCallback.onFailure(RealCall.this, e); } } finally { client.dispatcher().finished(this); } } ... }
可以看到它是通过getResponseWithInterceptorChain来访问网络获取Response的。
同步访问 如果想用OkHttp去阻塞是的访问网络我们可以这样调用:
1 Response response = client.newCall(request).execute();
这个execute是不是有点眼熟,但它是Call的一个方法,并不是我们上面异步访问中提到的NamedRunnable.execute:
1 2 3 4 5 public interface Call { ... Response execute() throws IOException; .. }
现在我们来看看具体实现:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 final class RealCall implements Call { ... @Override public Response execute() throws IOException { synchronized (this) { if (executed) throw new IllegalStateException("Already Executed"); executed = true; } try { client.dispatcher().executed(this); Response result = getResponseWithInterceptorChain(false); if (result == null) throw new IOException("Canceled"); return result; } finally { client.dispatcher().finished(this); } } ... }
它也是通过getResponseWithInterceptorChain来访问网络获取Response的。
拦截器的实现 我们在前面的小节中已经知道了,无论是同步还是异步,最终都是通过RealCall.getResponseWithInterceptorChain方法去访问网络的。但是在查看具体源代码的时候发现在okhttp3.4.0-RC1开始其具体的实现细节有了一些不一样的地方。所以我这边分开两部分来讲一讲okhttp3.4.0-RC1之前和之后拦截器的具体实现细节。
okhttp3.4.0-RC1之前的实现 okhttp3.4.0-RC1之前的RealCall.getResponseWithInterceptorChain 中实际上是调用了ApplicationInterceptorChain.proceed方法去访问网络获取Response:
1 2 3 4 private Response getResponseWithInterceptorChain(boolean forWebSocket) throws IOException { Interceptor.Chain chain = new ApplicationInterceptorChain(0, originalRequest, forWebSocket); return chain.proceed(originalRequest); }
然后继续看源码,可以发现proceed内部会从OkHttpClient获取序号为index的拦截器,并且创建新的序号加一的ApplicationInterceptorChain传递给拦截器去执行。于是有多少个拦截器就创建了多少个ApplicationInterceptorChain,他们会按照自己的序号调用对应的拦截器。这其实就是一种责任链模式的实现方式:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 @Override public Response proceed(Request request) throws IOException { // If there's another interceptor in the chain, call that. if (index < client.interceptors().size()) { Interceptor.Chain chain = new ApplicationInterceptorChain(index + 1, request, forWebSocket); Interceptor interceptor = client.interceptors().get(index); Response interceptedResponse = interceptor.intercept(chain); if (interceptedResponse == null) { throw new NullPointerException("application interceptor " + interceptor + " returned null"); } return interceptedResponse; } // No more interceptors. Do HTTP. return getResponse(request, forWebSocket); }
如果ApplicationInterceptorChain的序号大于OkHttpClient中注册的拦截器的数量,则调用getResponse方法。这里ApplicationInterceptorChain是RealCall的内部类,getResponse调用的是RealCall.getResponse方法。
再看RealCall.getResponse方法,它内部有个while true的死循环,调用HttpEngine.sendRequest和HttpEngine.readResponse去发送请求和接收响应,如果出现了RouteException异常或者IOException异常则重新尝试访问:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 Response getResponse(Request request, boolean forWebSocket) throws IOException { ... while (true) { ... try { engine.sendRequest(); engine.readResponse(); releaseConnection = false; } catch (RouteException e) { HttpEngine retryEngine = engine.recover(e.getLastConnectException(), true, null); if (retryEngine != null) { releaseConnection = false; engine = retryEngine; continue; } throw e.getLastConnectException(); }catch (IOException e) { HttpEngine retryEngine = engine.recover(e, false, null); if (retryEngine != null) { releaseConnection = false; engine = retryEngine; continue; } throw e; } ... }
我们继续看engine.readResponse的实现,可以看到它调用了NetworkInterceptorChain.proceed方法去获取响应:
1 2 3 4 5 6 7 8 public void readResponse() throws IOException { ... Response networkResponse; ... networkResponse = new NetworkInterceptorChain(0, networkRequest, streamAllocation.connection()).proceed(networkRequest); ... }
NetworkInterceptorChain.proceed和ApplicationInterceptorChain.proceed类似,也会不断的创建新的NetworkInterceptorChain并且调用网络拦截器,如果没有网络拦截器可以调用了,则会调用readNetworkResponse方法读取响应:
1 2 3 4 5 6 7 8 9 10 11 12 13 @Override public Response proceed(Request request) throws IOException { ... if (index < client.networkInterceptors().size()) { NetworkInterceptorChain chain = new NetworkInterceptorChain(index + 1, request, connection); Interceptor interceptor = client.networkInterceptors().get(index); Response interceptedResponse = interceptor.intercept(chain); ... return interceptedResponse; } Response response = readNetworkResponse(); ... return response; }

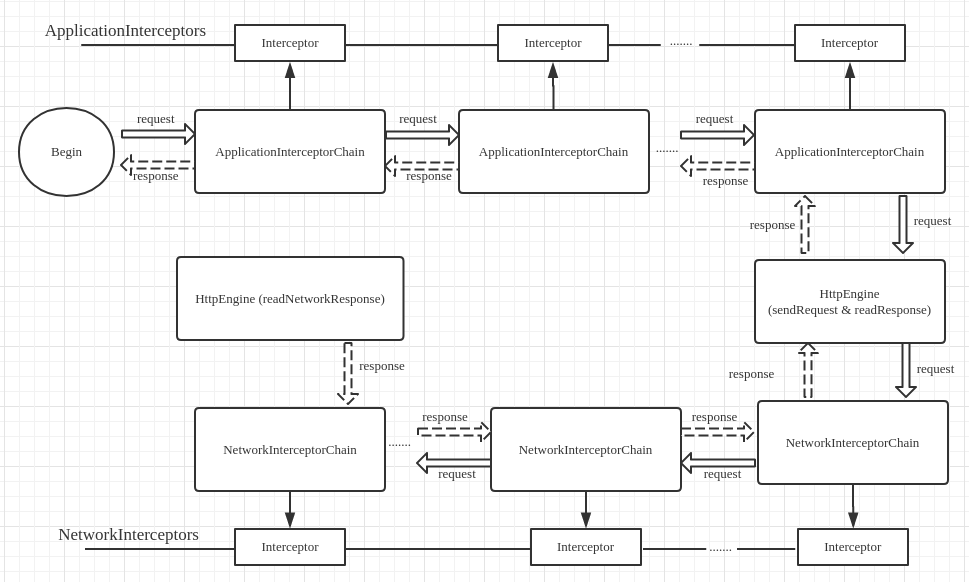

这里还有一点需要说明的是NetworkInterceptorChain是HttpEngine的内部类,它调用的readNetworkResponse方法实际上是HttpEngine.readNetworkResponse。现在我们就对OkHttp拦截器的请求流程和拦截器的实现原理有了比较全面的了解,下面这张图对整个流程做一个总结:
okhttp3.4.0-RC1之后的实现 然后让我们再来看一下3.4.0-RC1之后的实现:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 Response getResponseWithInterceptorChain() throws IOException { // Build a full stack of interceptors. List<Interceptor> interceptors = new ArrayList<>(); interceptors.addAll(client.interceptors()); interceptors.add(retryAndFollowUpInterceptor); interceptors.add(new BridgeInterceptor(client.cookieJar())); interceptors.add(new CacheInterceptor(client.internalCache())); interceptors.add(new ConnectInterceptor(client)); if (!forWebSocket) { interceptors.addAll(client.networkInterceptors()); } interceptors.add(new CallServerInterceptor(forWebSocket)); Interceptor.Chain chain = new RealInterceptorChain(interceptors, null, null, null, 0, originalRequest, this, eventListener, client.connectTimeoutMillis(), client.readTimeoutMillis(), client.writeTimeoutMillis()); return chain.proceed(originalRequest); }
这里已经不再区分ApplicationInterceptorChain和NetworkInterceptorChain了，统一用RealInterceptorChain去处理:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 public Response proceed(Request request, StreamAllocation streamAllocation, HttpCodec httpCodec, RealConnection connection) throws IOException { ... // Call the next interceptor in the chain. RealInterceptorChain next = new RealInterceptorChain(interceptors, streamAllocation, httpCodec, connection, index + 1, request, call, eventListener, connectTimeout, readTimeout, writeTimeout); Interceptor interceptor = interceptors.get(index); Response response = interceptor.intercept(next); ... return response; }
这里将cookie处理、缓存处理、网络连接都作为责任链的一部分，比起3.4.0.RC-1之前更加完全的实现了责任链模式。这里有必要讲一下的就是retryAndFollowUpInterceptor, 它是一个RetryAndFollowUpInterceptor实例，它负责重连和重定向我们之前在3.4.0.RC-1之前看到的getResponse的while true就放到了这里来实现。

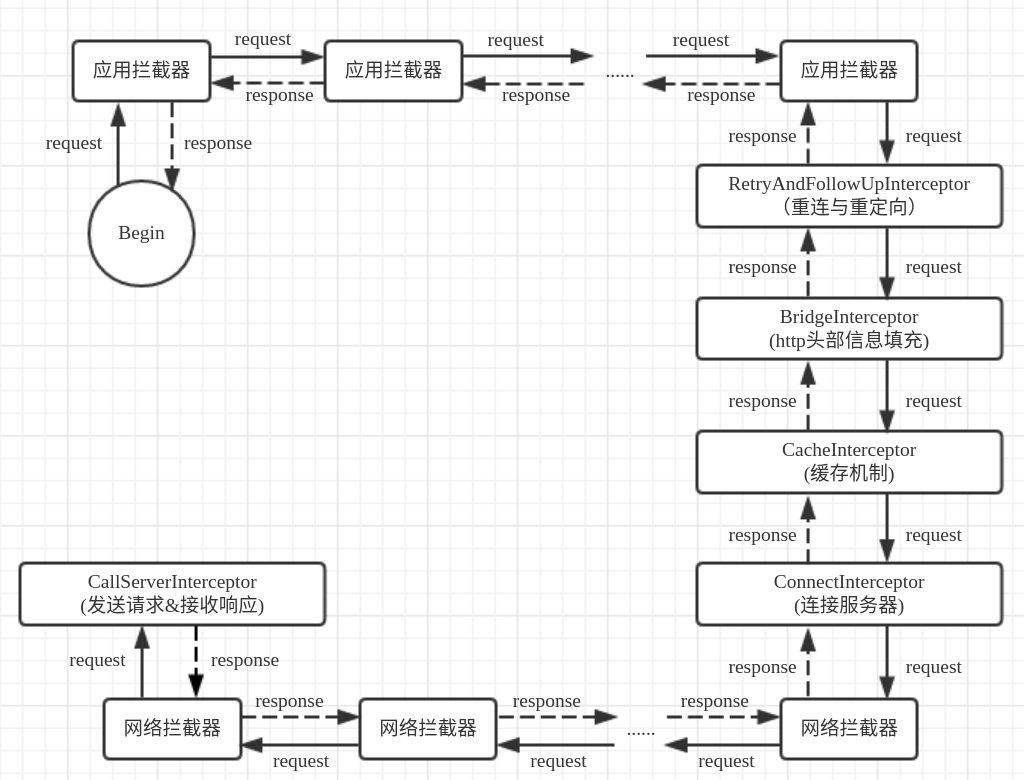

让我们看看它的整个流程:
这样的实现是不是以前要清晰很多？所有的步骤一目了然，看过原来的版本再看看3.4.0.RC-1重构后的版本，的确有一种眼前一亮的惊艳之感。果然好代码都是需要一点点优化出来的。
