插件化之启动没有注册的Activity

启动没有在AndroidManifest中注册的Activity是安卓插件化中一个很重要的知识点,只有这样你才能把Activity中分离出来,放到插件中.

启动没有在AndroidManifest中注册的Activity,会涉及到Activity启动流程、反射、动态代理的知识,我觉得就算不学插件化,掌握这些知识也是很有用的.

Activity的启动流程

为了达到启动没有在AndroidManifest中注册的Activity的目的,我们先来分析下Activity的启动流程,看看有没有什么突破口.

这部分的知识我在《从源码看Activity生命周期》这篇博客里面其实也有讲过,这里只做大概的讲解,然后做一些补充,感兴趣的同学可以将两篇博客结合起来看看.

抛出ActivityNotFoundException的原因

如果使用startActivity去启动一个没有在AndroidManifest中注册的Activity,正常情况下是会抛出ActivityNotFoundException的,那这个异常是怎么抛出来的呢?

我们知道调用Activity.startActivity方法,实际上最后是调用了Instrumentation.execStartActivity:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
public class Instrumentation {
...

public ActivityResult execStartActivity(
Context who, IBinder contextThread, IBinder token, Activity target,
Intent intent, int requestCode, Bundle options)
{

...
int result = ActivityManagerNative.getDefault()
.startActivity(whoThread, who.getBasePackageName(), intent,
intent.resolveTypeIfNeeded(who.getContentResolver()),
token, target != null ? target.mEmbeddedID : null,
requestCode, 0, null, null, options);
checkStartActivityResult(result, intent);
...
}

...

public static void checkStartActivityResult(int res, Object intent) {
...
switch (res) {
case ActivityManager.START_INTENT_NOT_RESOLVED:
case ActivityManager.START_CLASS_NOT_FOUND:
if (intent instanceof Intent && ((Intent)intent).getComponent() != null)
throw new ActivityNotFoundException(
"Unable to find explicit activity class "
+ ((Intent)intent).getComponent().toShortString()
+ "; have you declared this activity in your AndroidManifest.xml?");
throw new ActivityNotFoundException(
"No Activity found to handle " + intent);
...
}
...
}

...
}

可以看到Instrumentation又是通过ActivityManagerNative.getDefault()拿到一个IActivityManager去调用其startActivity来启动Activity的.

这个IActivityManager内部实际是通过Binder机制将处理转发给ActivityManagerService:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
public abstract class ActivityManagerNative extends Binder implements IActivityManager
...


static public IActivityManager getDefault() {
return gDefault.get();
}

...

private static final Singleton<IActivityManager> gDefault = new Singleton<IActivityManager>() {
protected IActivityManager create() {
//实际上是用Binder机制与AMS进行交互
IBinder b = ServiceManager.getService("activity");
IActivityManager am = asInterface(b);
return am;
}
};

...
}

所以可以看到通过ActivityManagerService去startActivity之后会有个返回值.

ActivityManagerService内部会使用PackageManagerService查询这个Activity是否在AndroidManifest中注册.如果没有,就会返回START_CLASS_NOT_FOUND或者START_INTENT_NOT_RESOLVED,这个时候Instrumentation就会抛出ActivityNotFoundException.

所以ActivityNotFoundException就是这样被抛出的.

Activity是怎样被创建的

我们都知道两个不同的进程直接是不能直接访问内存的,所以处于应用进程的Activity肯定还是应用进程去创建,而不是被AMS创建的.

这块的代码在ActivityThread中实现:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
public final class ActivityThread {
...
final H mH = new H();

...
@Override
public final void scheduleLaunchActivity(Intent intent, IBinder token, int ident,
ActivityInfo info, Configuration curConfig, Configuration overrideConfig,
CompatibilityInfo compatInfo, String referrer, IVoiceInteractor voiceInteractor,
int procState, Bundle state, PersistableBundle persistentState,
List<ResultInfo> pendingResults, List<ReferrerIntent> pendingNewIntents,
boolean notResumed, boolean isForward, ProfilerInfo profilerInfo)
{

...
sendMessage(H.LAUNCH_ACTIVITY, r);
}

...
private class H extends Handler {
public static final int LAUNCH_ACTIVITY = 100;
...

public void handleMessage(Message msg) {
switch (msg.what) {
case LAUNCH_ACTIVITY: {
Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "activityStart");
final ActivityClientRecord r = (ActivityClientRecord) msg.obj;

r.packageInfo = getPackageInfoNoCheck(
r.activityInfo.applicationInfo, r.compatInfo);
handleLaunchActivity(r, null, "LAUNCH_ACTIVITY");
Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);
} break;
...
}
...
}
...
}

AMS会调用ActivityThread的scheduleLaunchActivity,在这个方法中会使用一个Hander同步到主线程中再去创建Activity.

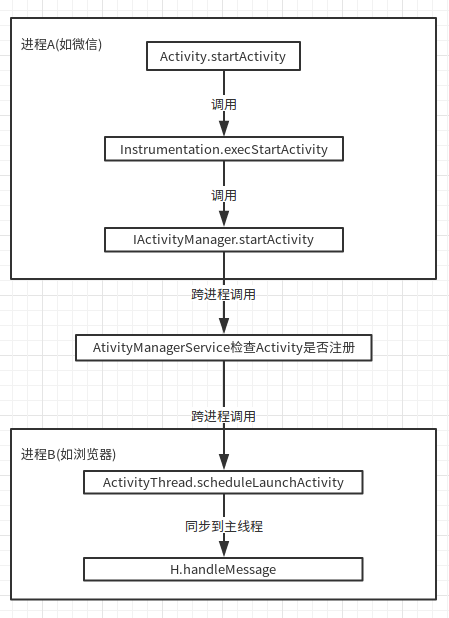

Activity启动的原理图

怎样欺骗ActivityManagerService

从上面的Activity启动的原理图可以看到大概的流程是:

应用将要启动的Activity告诉AMS->AMS检查Activity是否注册->AMS让ActivityThread去创建Activity.

那是不是可以这样呢?

  1. 新建一个StubActivity并且在AndroidManifest中注册
  2. 将想要启动的Activity换成StubActivity,而将真正想要启动的Activity保存到Extra中
  3. 骗过AMS
  4. 在ActivityThread中拿出真正想要创建的Activity换回来去创建

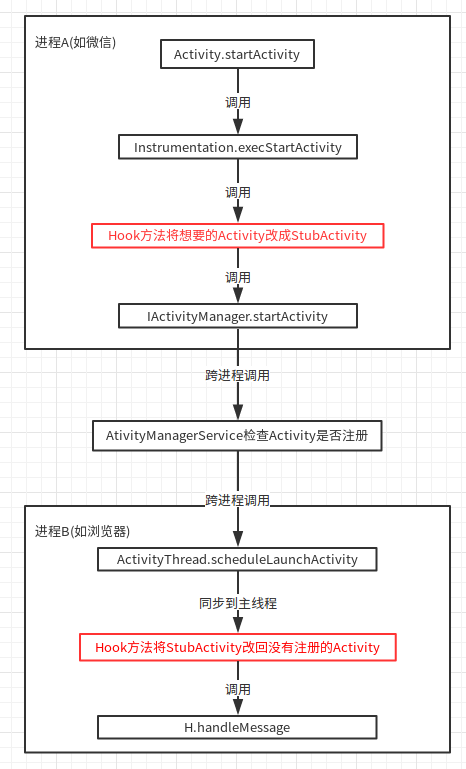

修改后的原理如下:

将要启动的Activity替换成StubActivity

第一步是将要启动的Activity替换成StubActivity,我们回顾下上一节看到的ActivityManagerNative代码:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
public abstract class ActivityManagerNative extends Binder implements IActivityManager
...


static public IActivityManager getDefault() {
return gDefault.get();
}

...

private static final Singleton<IActivityManager> gDefault = new Singleton<IActivityManager>() {
protected IActivityManager create() {
//实际上是用Binder机制与AMS进行交互
IBinder b = ServiceManager.getService("activity");
IActivityManager am = asInterface(b);
return am;
}
};

...
}

可以看到这个gDefault其实是个静态的私有成员变量.

那我们是不是可以通过反射,将它替换成我们写的Singleton,然后保存好原来的gDefault,在替换的代码里面先将要启动的Activity替换成StubActivity,然后再将Intent传给原来的gDefault?

大概的做法如下:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

class MyActivityManager implements IActivityManager {
private IActivityManager mOrigin;

public MyActivityManager(IActivityManager origin) {
mOrigin = origin;
}
public int startActivity(IApplicationThread caller, String callingPackage, Intent intent,
String resolvedType, IBinder resultTo, String resultWho, int requestCode, int flags,
ProfilerInfo profilerInfo, Bundle options) throws RemoteException
{

// TODO 将要启动的activity替换成StubActivity

return mOrigin. startActivity(caller, callingPackage, intent,
resolvedType, resultTo, resultWho, requestCode, flags,
profilerInfo, options);
}
...
}

Class c = Class.forName("android.app.ActivityManagerNative");
final Field field = c.getDeclaredField("gDefault");
field.setAccessible(true);

Singleton<IActivityManager> proxy = new Singleton<IActivityManager>() {
protected IActivityManager create() {
return new MyActivityManager(field.get(null));
}
};

field.set(null, proxy);

但是这个做法问题很大,首先我们要将IActivityManager的所有方法都实现一遍转发给mOrigin。而且最大的问题是IActivityManager和Singleton被隐藏了,我们在应用层是找不到定义的!

那怎么办呢?别急,我们先来看看Singleton的实现:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
public abstract class Singleton<T> {
private T mInstance;

protected abstract T create();

public final T get() {
synchronized (this) {
if (mInstance == null) {
mInstance = create();
}
return mInstance;
}
}
}

其实最终的IActivityManager是保存在mInstance这个变量里面的,我们只需要替换这个变量就好,于是就绕过了Singleton没有定义的问题。但是还有这个IActivityManager的定义问题摆在我们面前。

怎么办呢?答案就是我们可以用动态代理的方法去创建IActivityManager。关于动态代理我之前写过一篇博客 《Java自定义注解和动态代理》 ,大家感兴趣的话可以去看看。这里就直接把代码贴上了:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
// 获取gDefault
Class activityManagerClass = Class.forName("android.app.ActivityManagerNative");
Field gDefaultField = activityManagerClass.getDeclaredField("gDefault");
gDefaultField.setAccessible(true);
Object gDefault = gDefaultField.get(null);

// 获取mIntance
Class singletonClass = Class.forName("android.util.Singleton");
Field mInstanceField = singletonClass.getDeclaredField("mInstance");
mInstanceField.setAccessible(true);
Object mInstance = mInstanceField.get(gDefault);

// 替换mIntance
Object proxy = Proxy.newProxyInstance(
mInstance.getClass().getClassLoader(),
new Class[]{Class.forName("android.app.IActivityManager")},
new IActivityManagerHandler(mInstance));
mInstanceField.set(gDefault, proxy);


public static class IActivityManagerHandler implements InvocationHandler {
private Object mOrigin;

IActivityManagerHandler(Object origin) {
mOrigin = origin;
}

@Override
public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
if ("startActivity".equals(method.getName())) {
int index = 0;
for (int i = 0; i < args.length; i++) {
if (args[i] instanceof Intent) {
index = i;
break;
}
}
Intent raw = (Intent) args[index];

Intent intent = new Intent();
intent.setClassName(raw.getComponent().getPackageName(), StubActivity.class.getName());
intent.putExtra("RawIntent", raw);
args[index] = intent;
}
return method.invoke(mOrigin, args);
}
}

上面的代码的功能就是创建一个IActivityManager的代理,代理startActivity方法,将启动的Activity的Intent换成启动StubActivity的Intent,并且将原来的Intent保存起来放到RawIntent这个Extra里。

然后用它去替换ActivityManagerNative.gDefault的mInstance成员变量。

将StubActivity替换会要启动的Activity

在上面我们已经将要启动的Activity替换成了已经注册了的StubActivity,这样在AMS检查的时候就能在AndroidManifest查到,不会报ActivityNotFoundException了.

然后AMS会让ActivityThread去创建Activity,这个时候就要将StubActivity替换会真正要启动的Activity了.

再回顾下这部分的代码:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
public final class ActivityThread {
...
final H mH = new H();

...
@Override
public final void scheduleLaunchActivity(Intent intent, IBinder token, int ident,
ActivityInfo info, Configuration curConfig, Configuration overrideConfig,
CompatibilityInfo compatInfo, String referrer, IVoiceInteractor voiceInteractor,
int procState, Bundle state, PersistableBundle persistentState,
List<ResultInfo> pendingResults, List<ReferrerIntent> pendingNewIntents,
boolean notResumed, boolean isForward, ProfilerInfo profilerInfo)
{

...
sendMessage(H.LAUNCH_ACTIVITY, r);
}

...
private class H extends Handler {
public static final int LAUNCH_ACTIVITY = 100;
...

public void handleMessage(Message msg) {
switch (msg.what) {
case LAUNCH_ACTIVITY: {
Trace.traceBegin(Trace.TRACE_TAG_ACTIVITY_MANAGER, "activityStart");
final ActivityClientRecord r = (ActivityClientRecord) msg.obj;

r.packageInfo = getPackageInfoNoCheck(
r.activityInfo.applicationInfo, r.compatInfo);
handleLaunchActivity(r, null, "LAUNCH_ACTIVITY");
Trace.traceEnd(Trace.TRACE_TAG_ACTIVITY_MANAGER);
} break;
...
}
...
}
...
}

ActivityThread的scheduleLaunchActivity方法会被调到,然后会向mH发送LAUNCH_ACTIVITY消息.

所以关键点就是将这个mH变量替换成我们的代理对象,将Intent替换回之前保存的RawIntent.

但是这里有个问题,H是个内部类,我们是没有办法用动态代理的方式创建内部类的,也就是说我们没有办法替换掉mH这个对象.

于是只好继续挖一挖Handler内部有没有机会了,其实在Handler.dispatchMessage里面是会先判断mCallback是不是有赋值的,如果有就会将消息交给它去处理.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
public class Handler {
...
final Callback mCallback;
...
public void dispatchMessage(Message msg) {
if (msg.callback != null) {
handleCallback(msg);
} else {
if (mCallback != null) {
if (mCallback.handleMessage(msg)) {
return;
}
}
handleMessage(msg);
}
}
...
}

所以我们可以从这个mCallback入手,将mH的mCallback设置成我们的代理对象:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
// 获取ActivityThread实例
Class activityThreadClass = Class.forName("android.app.ActivityThread");
Field threadField = activityThreadClass.getDeclaredField("sCurrentActivityThread");
threadField.setAccessible(true);
Object sCurrentActivityThread = threadField.get(null);

// 获取mH变量
Field mHField = activityThreadClass.getDeclaredField("mH");
mHField.setAccessible(true);
Object mH = mHField.get(sCurrentActivityThread);

// 设置mCallback变量
Field mCallbackField = Handler.class.getDeclaredField("mCallback");
mCallbackField.setAccessible(true);
Handler.Callback callback = new Handler.Callback() {
@Override
public boolean handleMessage(Message msg) {
if (msg.what == 100) {
try {
Field intentField = msg.obj.getClass().getDeclaredField("intent");
intentField.setAccessible(true);
Intent intent = (Intent) intentField.get(msg.obj);
Intent raw = intent.getParcelableExtra("RawIntent");
intent.setComponent(raw.getComponent());
} catch (Exception e) {
Log.e("hook", "get intent err", e);
}

}
return false;
}
};
mCallbackField.set(mH, callback);

ActivityThread的实例保存在sCurrentActivityThread这个静态成员变量里,代码我就不贴了,然后我们在mCallback这里将要启动的Activity设置回来.

处理Android 8.0的情况

上面的代码运行在8.0的系统上会崩溃,原因是8.0对Activity的启动这块做了些改动,不再使用ActivityManagerNative.getDefault()了,改成了ActivityManager.getService():

1
2
3
4
5
6
7
8
9
10
11
12
public ActivityResult execStartActivity(
Context who, IBinder contextThread, IBinder token, Activity target,
Intent intent, int requestCode, Bundle options) {
...
int result = ActivityManager.getService()
.startActivity(whoThread, who.getBasePackageName(), intent,
intent.resolveTypeIfNeeded(who.getContentResolver()),
token, target != null ? target.mEmbeddedID : null,
requestCode, 0, null, options);
checkStartActivityResult(result, intent);
...
}

ActivityManager其实和ActivityManagerNative很像:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
public class ActivityManager {
...
public static IActivityManager getService() {
return IActivityManagerSingleton.get();
}
...
private static final Singleton<IActivityManager> IActivityManagerSingleton =
new Singleton<IActivityManager>() {
@Override
protected IActivityManager create() {
final IBinder b = ServiceManager.getService(Context.ACTIVITY_SERVICE);
final IActivityManager am = IActivityManager.Stub.asInterface(b);
return am;
}
};
...
}

所以我们类似的去替换IActivityManagerSingleton就好了:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
// 获取IActivityManagerSingleton
Class activityManagerClass = Class.forName("android.app.ActivityManager");
Field singletonField = activityManagerClass.getDeclaredField("IActivityManagerSingleton");
singletonField.setAccessible(true);
Object gDefault = singletonField.get(null);

// 获取mIntance
Class singletonClass = Class.forName("android.util.Singleton");
Field mInstanceField = singletonClass.getDeclaredField("mInstance");
mInstanceField.setAccessible(true);
Object mInstance = mInstanceField.get(gDefault);

// 替换mIntance
Object proxy = Proxy.newProxyInstance(
mInstance.getClass().getClassLoader(),
new Class[]{Class.forName("android.app.IActivityManager")},
new IActivityManagerHandler(mInstance));
mInstanceField.set(gDefault, proxy);

处理AppCompatActivity的情况

到目前为止,我们已经可以正常启动没有注册的Activity了,但是其实还有一个BUG:如果启动的是没有注册的AppCompatActivity就会崩溃。

1
2
3
4
5
6
7
8
9
10-25 19:32:30.867  8754  8754 E AndroidRuntime: Caused by: java.lang.IllegalArgumentException: android.content.pm.PackageManager$NameNotFoundException: ComponentInfo{me.linjw.plugindemo/me.linjw.plugindemo.HideActivity}
10-25 19:32:30.867 8754 8754 E AndroidRuntime: at android.support.v4.app.NavUtils.getParentActivityName(NavUtils.java:285)
10-25 19:32:30.867 8754 8754 E AndroidRuntime: at android.support.v7.app.AppCompatDelegateImplV9.onCreate(AppCompatDelegateImplV9.java:158)
10-25 19:32:30.867 8754 8754 E AndroidRuntime: at android.support.v7.app.AppCompatDelegateImplV14.onCreate(AppCompatDelegateImplV14.java:58)
10-25 19:32:30.867 8754 8754 E AndroidRuntime: at android.support.v7.app.AppCompatActivity.onCreate(AppCompatActivity.java:72)
10-25 19:32:30.867 8754 8754 E AndroidRuntime: at com.cvte.tv.speech.TestActivity.onCreate(TestActivity.java:14)
10-25 19:32:30.867 8754 8754 E AndroidRuntime: at android.app.Activity.performCreate(Activity.java:6664)
10-25 19:32:30.867 8754 8754 E AndroidRuntime: at android.app.Instrumentation.callActivityOnCreate(Instrumentation.java:1118)
10-25 19:32:30.867 8754 8754 E AndroidRuntime: at android.app.ActivityThread.performLaunchActivity(ActivityThread.java:2599)

网上很多讲启动未注册的Activity的文章要不就没有讲这个,要不就没有详细讲如何处理,直接一笔带过了.这里我手把手带大家解BUG.

遇到问题先不要慌,先看看打印找到崩溃的代码在哪:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
@Nullable
public static String getParentActivityName(Activity sourceActivity) {
try {
return getParentActivityName(sourceActivity, sourceActivity.getComponentName());
} catch (NameNotFoundException e) {
// Component name of supplied activity does not exist...?
throw new IllegalArgumentException(e);
}
}

@Nullable
public static String getParentActivityName(Context context, ComponentName componentName)
throws NameNotFoundException {

PackageManager pm = context.getPackageManager();
ActivityInfo info = pm.getActivityInfo(componentName, PackageManager.GET_META_DATA);
String parentActivity = IMPL.getParentActivityName(context, info);
return parentActivity;
}

很明显是PackageManager.getActivityInfo在AndroidManifest里面找不到Activity抛出了NameNotFoundException.

所以我们看看有没有办法替换一下这个Context.getPackageManager()拿到的PackageManager:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
class ContextImpl extends Context {
...
@Override
public PackageManager getPackageManager() {
if (mPackageManager != null) {
return mPackageManager;
}

IPackageManager pm = ActivityThread.getPackageManager();
if (pm != null) {
// Doesn't matter if we make more than one instance.
return (mPackageManager = new ApplicationPackageManager(this, pm));
}

return null;
}
...
}

ContextImpl会从ActivityThread.getPackageManager获取IPackageManager,让我们继续挖:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
public final class ActivityThread {
...
static volatile IPackageManager sPackageManager;
...
public static IPackageManager getPackageManager() {
if (sPackageManager != null) {
//Slog.v("PackageManager", "returning cur default = " + sPackageManager);
return sPackageManager;
}
IBinder b = ServiceManager.getService("package");
//Slog.v("PackageManager", "default service binder = " + b);
sPackageManager = IPackageManager.Stub.asInterface(b);
//Slog.v("PackageManager", "default service = " + sPackageManager);
return sPackageManager;
}
...
}

所以sPackageManager就是我们的突破点,让我们来把它换掉:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
try {
//要先获取一下,保证它初始化
context.getPackageManager();

Class activityThread = Class.forName("android.app.ActivityThread");
Field pmField = activityThread.getDeclaredField("sPackageManager");
pmField.setAccessible(true);
final Object origin = pmField.get(null);
Object handler = Proxy.newProxyInstance(activityThread.getClassLoader(),
new Class[]{Class.forName("android.content.pm.IPackageManager")},
new PackageManagerHandler(context, origin));
pmField.set(null, handler);
} catch (Exception e) {
Log.e("hook", "hook IPackageManager err", e);
}

static class PackageManagerHandler implements InvocationHandler {
private Context mContext;
private Object mOrigin;

PackageManagerHandler(Context context, Object origin) {
mContext = context;
mOrigin = origin;
}

@Override
public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
if (!method.getName().equals("getActivityInfo")) {
return method.invoke(mOrigin, args);
}

//如果没有注册,并不会抛出异常,而是会直接返回null
Object ret = method.invoke(mOrigin, args);
if (ret == null) {
for (int i = 0; i < args.length; i++) {
if (args[i] instanceof ComponentName) {
ComponentName componentName = (ComponentName) args[i];
componentName.getClassName();
args[i] = new ComponentName(
mContext.getPackageName(),
StubActivity.class.getName()
);
return method.invoke(mOrigin, args);
}
}
}
return ret;

}
}

在IPackageManager.getActivityInfo方法抛出异常的时候invoke会返回null,就代表这个Activity没有注册,我们直接将他换成StubActivity就好。

大功告成!

完整Demo

完整Demo见我的Github
